114-13227

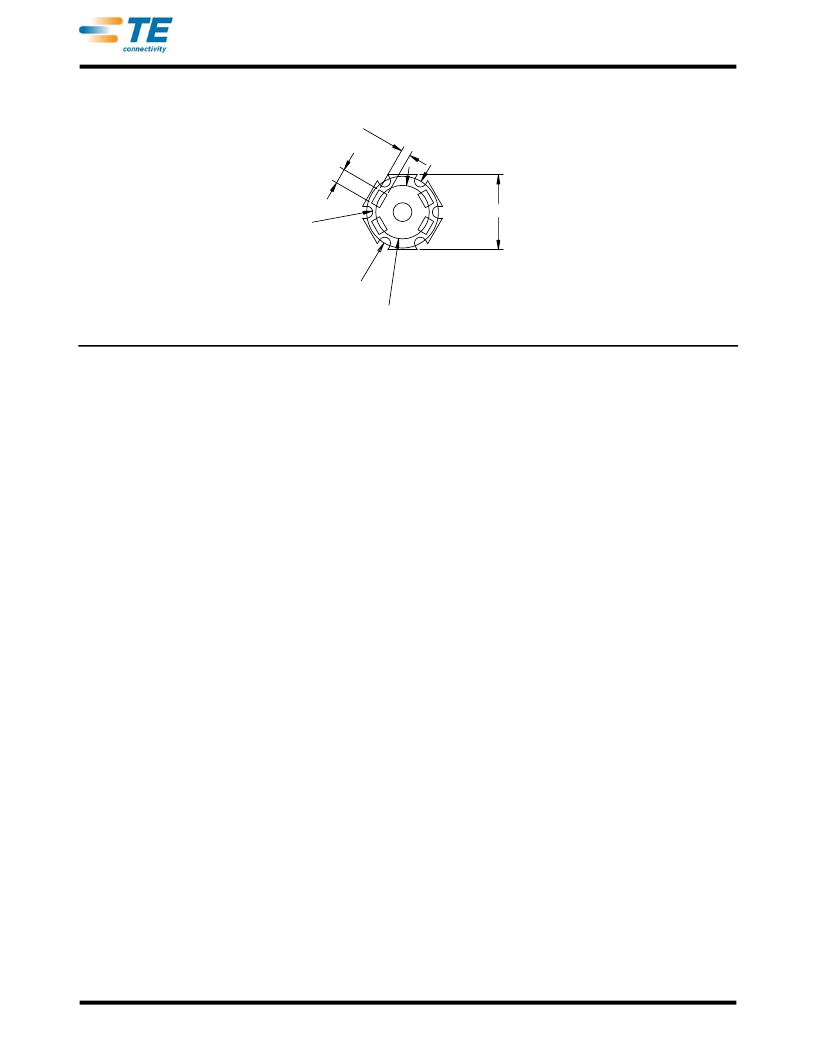

Sample “Star Board” Pattern
2.5 [.10]
4 [.16]
R 1.6 [.063]
19.9 [.78]
? 19 [.75]
? 14.2 [.56]
Figure 2
B. Connections
The electrical connector tabs of the star board holder accept Ultra-Fast Series 110 fully-insulated FASTON*
cable assemblies.
C. Thermally-Conductive Pad or Thermal Grease
A thermally-conductive pad or thermal grease must be used for assembly.
3.7. Assembly
The star board holder must be assembled using the following requirements:
1. A thermally-conductive pad or thermal grease must be placed into the hexagonal inset of the heat sink.
2. The LED must be installed over the thermally-conductive pad or thermal grease. The polarity of the LED
should be oriented with the polarity reference markings of the heat sink.
3. The contact carrier assembly must be inserted into the heat sink with the polarity reference markings
aligned with polarity reference markings of the heat sink (A with A, B with B, C with C, and D with D).
4. The locking ring must be inserted into the heat sink and rotated using a long-nosed pliers or large snap ring
tool with right-angle tips so that it secures the contact carrier assembly.
5. If used, the diffuser lens and other optional components must be installed onto the locking ring.
6. The cable assemblies must be connected to the electrical connector tabs.
Refer to Figure 3.
Rev C
3 of 5
